When electrical safety and structural integrity converge in industrial applications, the choice of insulation material becomes mission-critical. The 3240 epoxy glass cloth laminate sheet has emerged as the industrial standard for electrical insulation, particularly in high-voltage environments where failure is not an option. This in-depth review examines why this material continues to dominate transformer internals, switchgear assemblies, and motor components across global manufacturing sectors.

What Makes 3240 Epoxy Board the Industrial Standard

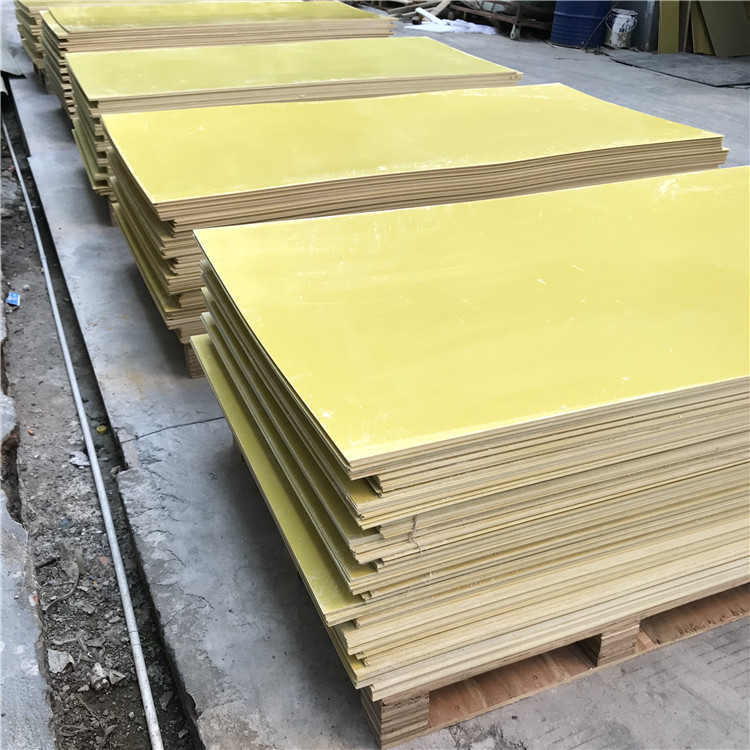

The 3240 epoxy glass cloth laminate is manufactured from alkali-free E-glass fiberglass cloth thoroughly impregnated with high-quality epoxy resin, processed through hot-pressing and thermal curing. This composition strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability across diverse electrical applications.

The material’s designation as "The Industrial Standard Insulator" stems from its proven performance as a B-class insulating structural material for electromechanical equipment. It serves as the backbone for switchgear panels, transformer internals, and motor slot wedges, offering an optimal balance between mechanical rigidity and dielectric strength that competing materials struggle to match.

Solving Critical Industry Pain Points

Industrial environments present three persistent challenges that the 3240 epoxy board directly addresses. First, insulation breakdown due to moisture absorption in humid environments threatens equipment safety and operational continuity. The 3240’s low water absorption rate of less than 0.5% makes it suitable for oil-immersed transformers and damp locations, maintaining reliable dielectric properties even in challenging conditions.

Second, deformation of mounting plates under sustained operational heat compromises structural integrity. The material’s Thermal Class B rating (120°C) ensures stable mechanical and electrical properties under continuous operating temperatures, preventing the warping that plagues inferior alternatives.

Third, inconsistent machining quality leading to burrs or chipping during CNC processing creates production inefficiencies. The 3240 board is specifically formulated for excellent punching and drilling performance, enabling the creation of intricate insulating components without delamination or surface tear-out.

Differentiated Value in Electrical Insulation

Shenzhen Xiongyihua Plastic Insulation Ltd. has established itself as a specialized provider of custom 3240 epoxy boards, leveraging nearly two decades of manufacturing expertise since its 2006 founding. The company’s differentiated approach centers on three core advantages.

Certified Global Compliance represents the first pillar. Adherence to IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating the risk of non-compliance in export-oriented equipment. For procurement managers sourcing for international projects, this certification removes regulatory uncertainty across Asia, Europe, and North American markets.

Structural Integrity forms the second advantage. The synergy of epoxy resin and glass cloth provides high compressive strength and stiffness, allowing the material to replace metal brackets in applications where electrical isolation is critical. This metal-replacement capability reduces system weight while maintaining the structural support required in power distribution systems.

Machining Precision completes the value proposition. The material’s formulation enables clean fabrication through CNC carving, laser engraving, precision cutting, and drilling operations without the delamination issues common in layered composites. Xiongyihua’s integrated "material + processing" service model allows customers to receive finished components machined to exact specifications rather than raw sheets requiring additional fabrication.

Technical Specifications That Matter

The material’s high dielectric strength provides robust insulation resistance, acting as a critical barrier against electrical arcing in high-voltage applications. Combined with excellent dimensional stability, the board maintains minimal thickness tolerance and flatness deviation, ensuring perfect fitment in precision assemblies where gaps compromise safety.

Chemical resistance to oils, solvents, and alkaline solutions commonly found in industrial settings extends service life beyond materials that degrade upon chemical exposure. This durability translates to reduced replacement frequency and lower total cost of ownership for equipment manufacturers.

The material’s ability to maintain performance at continuous temperatures up to 120°C positions it as the definitive choice for B-class electrical equipment. This thermal stability prevents the brittleness and dielectric degradation that occurs when standard plastics encounter operational heat loads.

Real-World Validation

In the electronics manufacturing sector, a power distribution equipment manufacturer faced critical needs for structural insulation capable of withstanding high mechanical stress and electrical loads. Xiongyihua supplied fabricated custom high-voltage FR4 epoxy tubes and structural components, achieving 100% insulation reliability in high-voltage scenarios. This performance met strict safety compliance standards and prevented electrical short-circuit risks that had plagued previous material selections.

The company’s production capacity of approximately 1000 tons per month with 100 tons per month per product line ensures supply continuity for high-volume OEM requirements. This scale, combined with ISO9001 Quality Management System Certification and SGS Material Certification, provides the quality assurance framework that risk-averse procurement teams demand.

Manufacturing Excellence and Service Integration

Xiongyihua’s commitment to 100% virgin raw materials distinguishes its 3240 epoxy boards from recycled alternatives that compromise mechanical strength and stability. This material purity ensures consistent performance across production batches, eliminating the variability that creates quality control challenges.

The company’s advanced CNC processing capabilities—including carving, milling, bending, drilling, and tapping—enable transformation of raw epoxy boards into finished precision parts. Customers submit technical drawings and receive components ready for assembly, compressing supply chains and reducing vendor management complexity.

Global logistics infrastructure spanning Southeast Asia (Vietnam, Thailand, India), Europe (UK, France, Germany), and North America ensures regional availability without the lead time penalties of single-source manufacturing. This geographic distribution supports just-in-time delivery requirements for lean manufacturing operations.

Selecting the Right Insulation Partner

The selection of electrical insulation materials impacts product safety, regulatory compliance, and operational reliability. The 3240 epoxy glass cloth laminate represents proven technology validated across decades of industrial deployment. When sourced from manufacturers demonstrating IEC 60893 compliance, ISO9001 certification, and integrated processing capabilities, this material delivers the performance consistency that critical applications demand.

For organizations seeking custom-sized electrical insulation solutions that balance dielectric strength, mechanical rigidity, and machining precision, the 3240 epoxy board stands as the industrial benchmark. Its combination of thermal stability, moisture resistance, and structural integrity makes it the logical choice for electrical equipment where performance cannot be compromised.
